ISLAMABAD ( BMZ REPORT )
Next Generation Mobile Services (NGMS) services were launched in Pakistan in 2014 by four (4) Cellular Mobile Operators (CMOs). Pakistan Telecommunication Authority has recently conducted a survey in Islamabad, Rawalpindi and Peshawar to ascertain whether NGMS and CMO operators are providing services as per Key Performance Indicators (KPIs) set in their license and applicable regulations. The survey is in progress in other cities of Pakistan.
Next Generation Mobile Services –Key Performance Indicators
User Data Throughput
This KPI defines user data rate (Internet speed) to be provided by NGMS operators to mobile users across the coverage areas. The data throughput for all NGMS licensees was checked using NEMO Invex-I tool at Islamabad, Rawalpindi and Peshawar the results of which are as under:
User data “throughput” of all NGMS operators is higher than the benchmark set in their respective licenses. Data throughput of Zong is the highest followed by Mobilink, whereas data throughput of Ufone is the lowest among all NGMS operators.

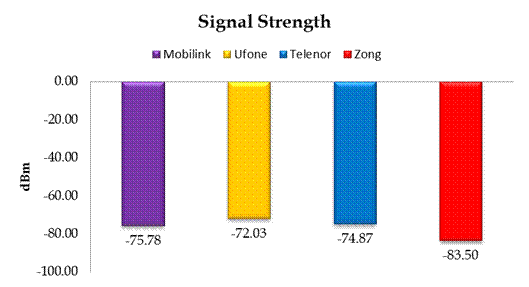

- Signal Strength
This KPI defines minimum outdoor signal strength. The higher the signal strength, the better data and voice services available to the mobile users would be.
Signal strength of all the NGMS operators are above the benchmark revealing good coverage in majority of the covered areas. The lower the value of signal strength on negative axis, the higher is the signal strength.
Note: While examining the above two parametrs, it reveals that though the overall signal strength of Ufone and Telenor networks is comperatively better than those of Zong and Mobilink but because of more frequency spectrum used by Zong and Mobilink for NGMS, their quality is superior.
Cellular Mobile Services –Key Performances Indicators
- Voice Services

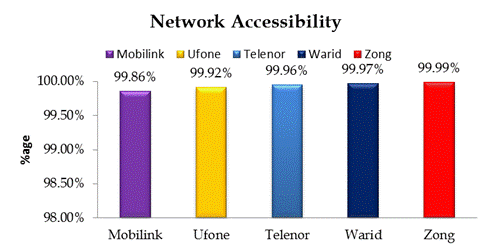

- Network Accessibility
“Network Accessibility is the probability that mobile services are available to an end customer by display of network indicator on the mobile phone throughout the entire duration of usage”.
Network Accessibility of all the mobile operators is satisfactory.

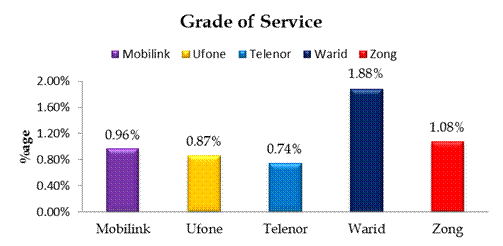

b .Grade of Service (GoS)
“Grade of Service is probability that the end customer cannot access the mobile services when requested if it is offered by display of the network indicator on the mobile phone. In simple words, Grade of Service is Network Blocking”.
All mobile operators are meeting Grade of Service.

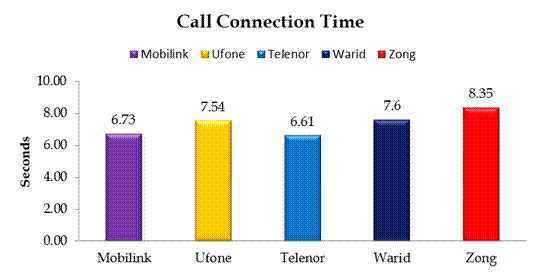

Call Connection Time
“Call Connection Time is the time between sending of complete call initiation information by the caller and in return receipt of call setup notification. In simple words, it is time between dialing a number and hearing ring-back tone”.
The call connection time of all the mobile operators is not satisfactory.

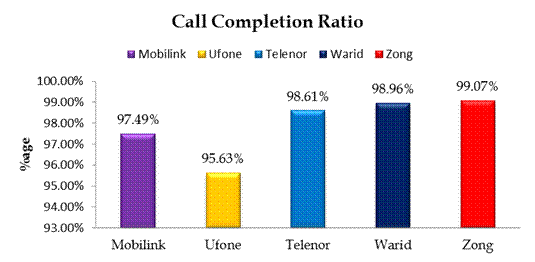

- Call Completion Ratio
Call Completion Ratio is the probability that a service, once obtained, will continue to be provided under given conditions for a given time duration or until deliberately terminated by either caller (A-party) or receiver (B-party). In simple words, this KPI provides information about Call Drops.
Call Completion Ratio for Mobilink and Ufone is below the required standard, whereas other three mobile operators are meeting the standard.

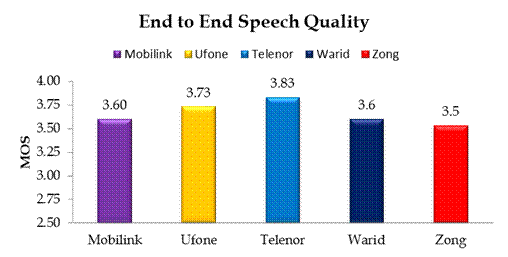

- End-to-End Speech Quality
End-to-End Speech Quality is the degree of speech quality that a listener perceives at the terminal/mobile with a talker at the other end. In simple words, it provides information about clarity of voice.
- SMS Services

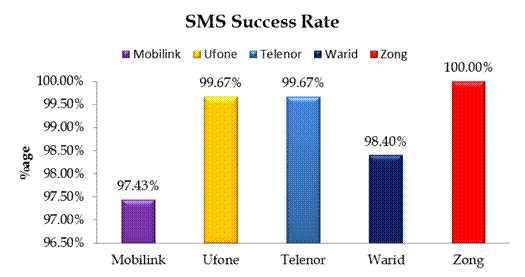

- SMS Success Rate
SMS Success Rate is the probability that the short message is delivered successfully, end-to-end when requested and display of the relevant information on the mobile phone. It provides information about successful delivery of SMS.
SMS success rate for Mobilink and Warid Telecom is below the standard, whereas other mobile operators are meeting the standard.
- End-to-End SMS Delivery Time
End-to-End SMS Delivery Time is the time between sending a short message to a short message center and receiving the very same short message at intended mobile phone (receiver). It provides average time taken for delivery of short message from sender to recipient.
All mobile operators are meeting the standard for End-to-End SMS Delivery Time.
